iCare EIDON UWF Retinal Imaging
iCare (Featured)

iCare EIDON UWF Retinal Imaging

Two things define the EIDON UWF: how far it sees and how honestly it renders color. One automated session takes documentation from the macula out to 200 degrees of periphery, and because the engine is confocal rather than flash-based, the 14-megapixel images (15 µm retinal resolution) keep their color discipline instead of washing out through media opacities. It works through pupils down to 2.5 mm without dilation, aligns and captures on its own, and adds infrared, autofluorescence and optional fluorescein angiography to the TrueColor base. Practices managing diabetic retinopathy, AMD or glaucoma, or building a wellness imaging program, get widefield reach and confocal color in one instrument.

Request Pricing → Schedule a Demo → Run the retinal imaging break-even on your numbers →
Practice Fit

Where The EIDON UWF Wins

If your practice prioritizes TrueColor confocal imaging with 200° of ultra-widefield coverage, the EIDON UWF is built for exactly that.

Best Fit

Retina and glaucoma practices, medical optometry, and any comprehensive office where peripheral documentation and color accuracy both matter, for daily documentation and advanced disease management alike.

Why This

Flash photography and confocal imaging fail differently: flash scatters through cataracts and small pupils, and the color drifts with it. The EIDON’s confocal TrueColor engine filters that scatter out, which is why images stay sharp and true-to-life in the very eyes that defeat conventional cameras, and it does so across the full 200° panorama at 15 µm resolution.

Practice Impact

Patients understand a 200-degree color image of their own retina in a way no chart note can match, which strengthens disease conversations, supports wellness imaging, and raises the standard of documentation across the practice.

Consider Instead

If your patient mix is mostly posterior-pole documentation and the periphery is a referral question rather than a daily one, the DRSplus gives you the same confocal approach in a simpler automated workflow. Buy the wider field when the wider field is what you are actually looking at.

Platform Strengths

Why Practices Choose EIDON UWF

200° Ultra-Widefield

A single automated session documents out to 200 degrees, reaching peripheral retina most conventional cameras never show you, at full resolution, with no dilation.

TrueColor Confocal Image Quality

Confocal optics reject the scattered light that cataracts and small pupils throw at a flash camera, so the 14-megapixel, 15 µm images stay sharp and color-faithful in difficult eyes.

AI-Ready Platform

AI screening tools want consistent, standardized retinal images, which is what a fully automated confocal capture produces by default. A practice imaging on the EIDON today is already building the image library those tools read.

Image Quality

TrueColor Confocal Imaging Examples

200° ultra-widefield mosaic images captured with the iCare EIDON UWF: TrueColor confocal imaging from macula to far periphery, non-mydriatic through 2.5 mm pupils.

200-degree TrueColor mosaic showing diabetic retinopathy

Diabetic Retinopathy: 200° TrueColor SmartMosaic

200-degree TrueColor mosaic showing branch retinal vein occlusion

Branch Retinal Vein Occlusion: 200° TrueColor SmartMosaic

200-degree TrueColor mosaic showing glaucomatous optic nerve

Glaucomatous Optic Nerve: 200° TrueColor SmartMosaic

Clinical images courtesy of iCare / Revenio Group. All images captured non-mydriatic.

Specifications

Technical Details
Technology
TrueColor confocal (SLO engine + white LED)
Sensor Resolution
14 megapixels (4608 × 3288 px) / 60 pixels/degree
Optical Resolution
15 µm on retina / 4.9 µm pixel pitch
FOV (standard single)
90° / up to 160° mosaic
FOV (with UWF Module)
120° single-shot / up to 200° mosaic
Light Sources
White LED (440–650 nm) / IR LED (825–870 nm) / Blue LED (440–475 nm, AF/FA models)
Min. Pupil Size
2.5 mm (non-mydriatic)
Auto-focusing Range
–15D to +15D
Working Distance
28 mm
Display
Tablet-operated multi-touch color display
Storage
SSD 480 GB (EIDON UWF/AF) / 2 TB (FA model)
Export Formats
JPEG, PDF, DICOM (optional)
Dimensions (W × H × D)
360 × 590 × 620 mm (14.2" × 23.2" × 24.4")
Weight
25 kg (55 lbs)
Power
100–240 VAC, 50–60 Hz, 80W / IEC 60601-1 Class I

Specifications reproduced from the manufacturer's published materials and last checked on September 1, 2026. Configurations and specifications change; confirm against the current quote before you rely on them.

The Whitecotton Vision Advantage

What You Get Beyond the Box

Installed in Your Lanes

Delivery is scheduled around your clinic days, the device is configured in your actual exam space, and your staff practices on it hands-on before the visit ends.

Workflow Planning

Where does the device live, who runs it, and how do results reach the doctor? That capture-to-review path gets mapped with your staff before go-live, so the technology fits how your clinic already moves.

Direct Support

When you need help you reach Ryan directly. No call center, no ticket queue, no account manager you have never met.

Related Products

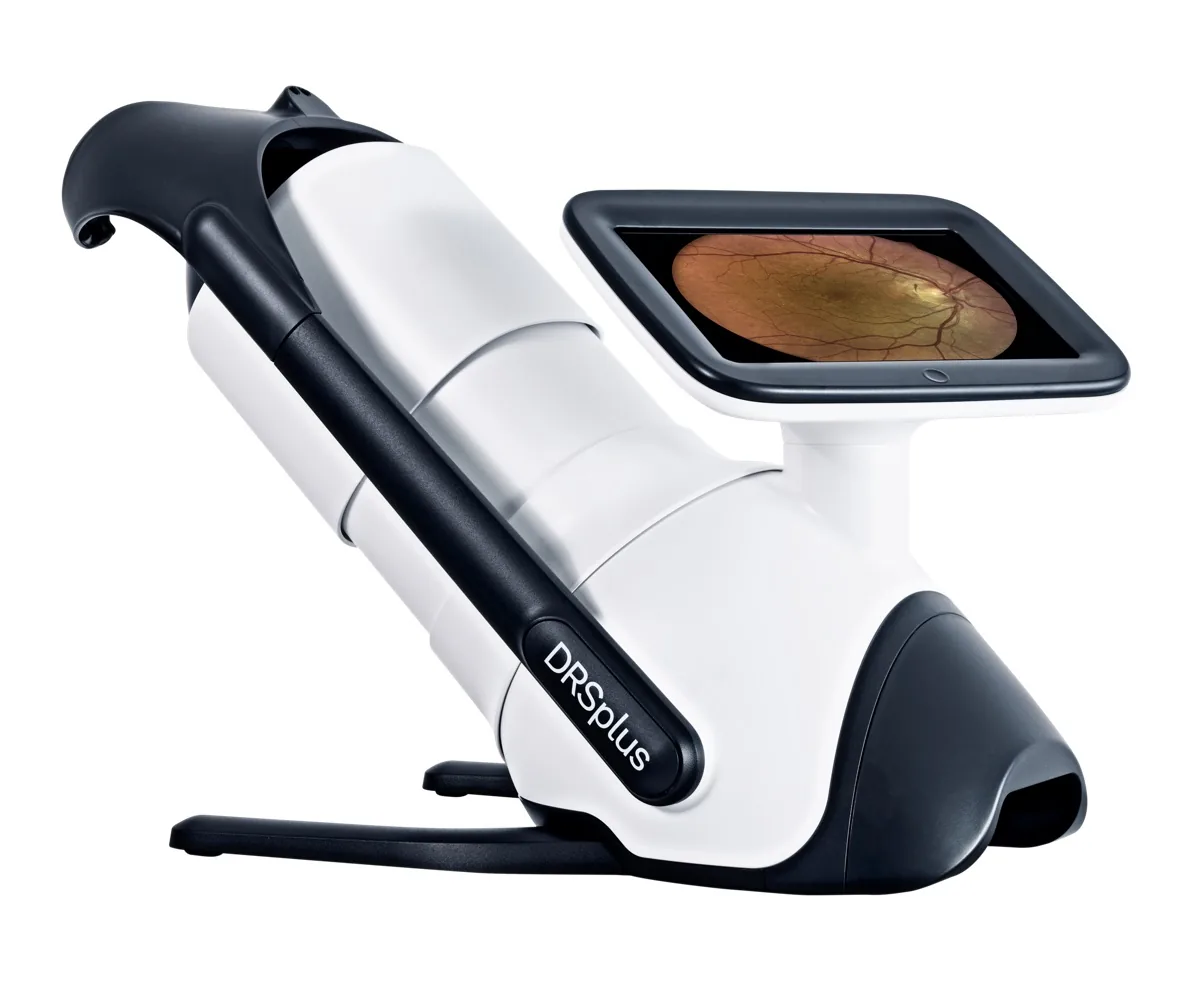

DRSplus Fundus Camera
